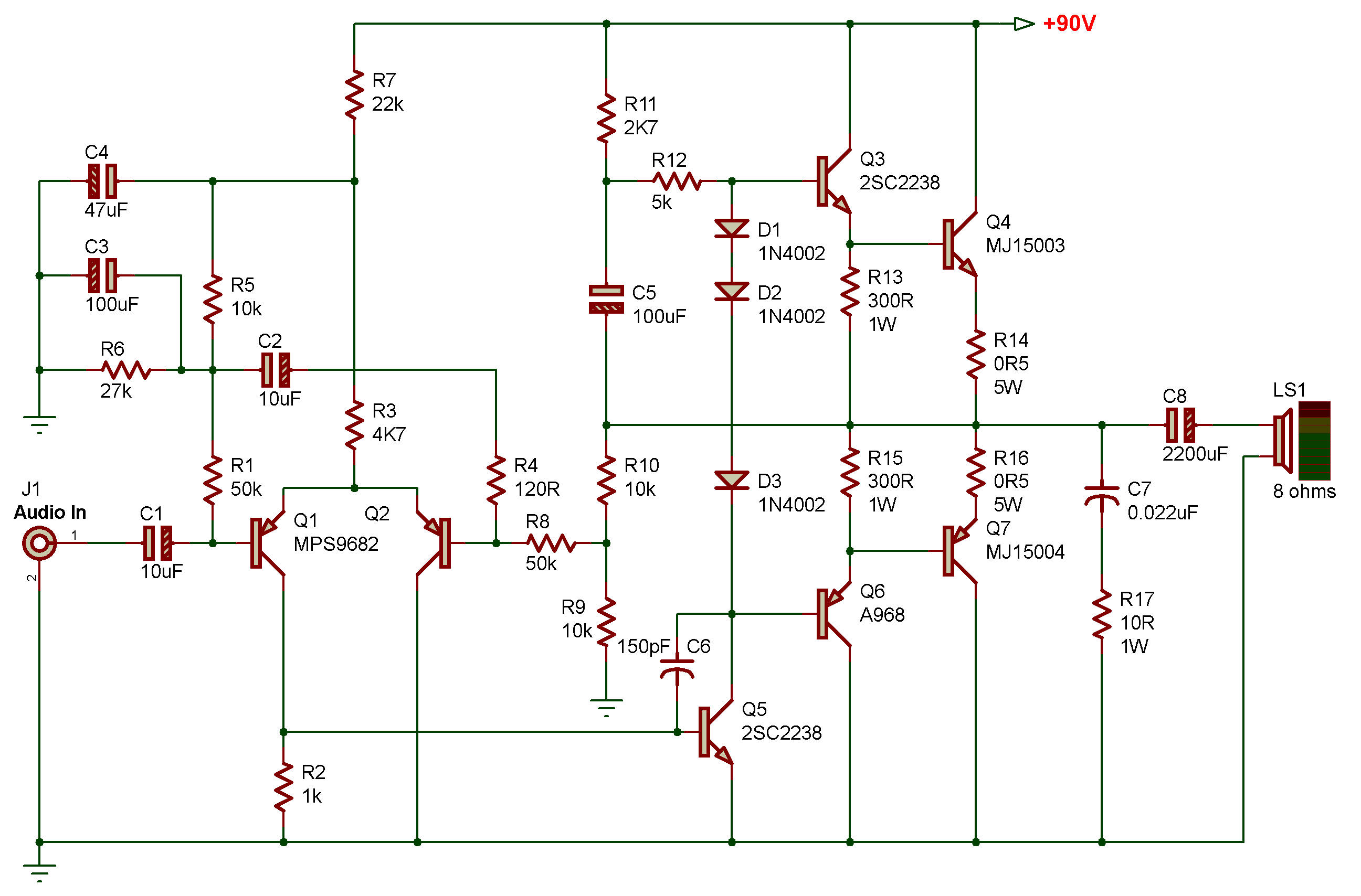

100W, 90V Audio amplifier
Électronique / Electronic
Audio

Bill Of Materials For 100W, 90V Audio amplifier
17 Resistors
Quantity: References Value
2 R1, R8 50k
1 R2 1k
1 R3 4K7
1 R4 120R
3 R5, R9, R10 10k
1 R6 27k
1 R7 22k
1 R11 2K7
1 R12 5k
2 R13, R15 300R
2 R14, R16 0R5
1 R17 10R
8 Capacitors
Quantity: References Value
2 C1, C2 10uF
2 C3, C5 100uF
1 C4 47uF
1 C6 150pF
1 C7 0.022uF
1 C8 2200uF
7 Transistors
Quantity: References Value
1 Q1 MPS9682
2 Q2, Q7 MJ15004
2 Q3, Q5 2SC2238
1 Q4 MJ15003
1 Q6 A968
3 Diodes
Quantity: References Value
3 D1-D3 1N4002
2 Miscellaneous
Quantity: References Value
1 J1 Audio In
1 LS1 8 ohms
