Miscellaneous Data Part 2

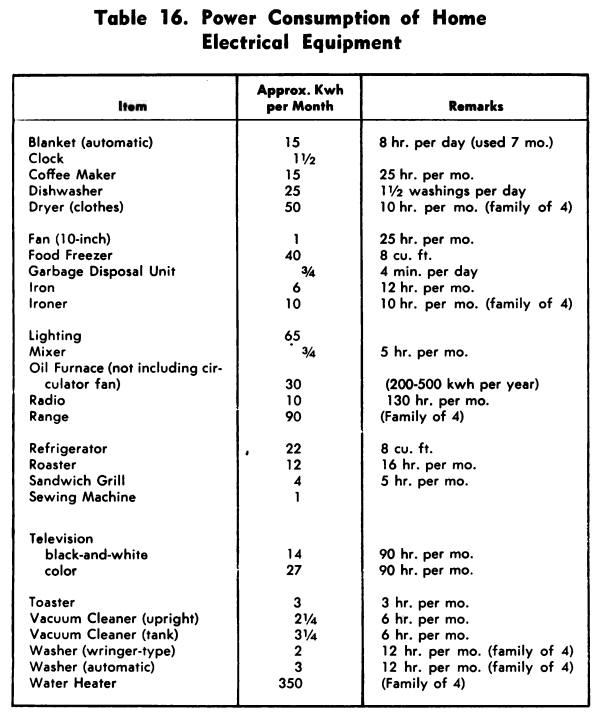

POWER CONSUMPTION OF HOME ELECTRICAL EQUIPMENT
The power consumption for many items of home electrical equipment used by an average family is given in Table 16. The approximate usage of each item is also listed where applicable.

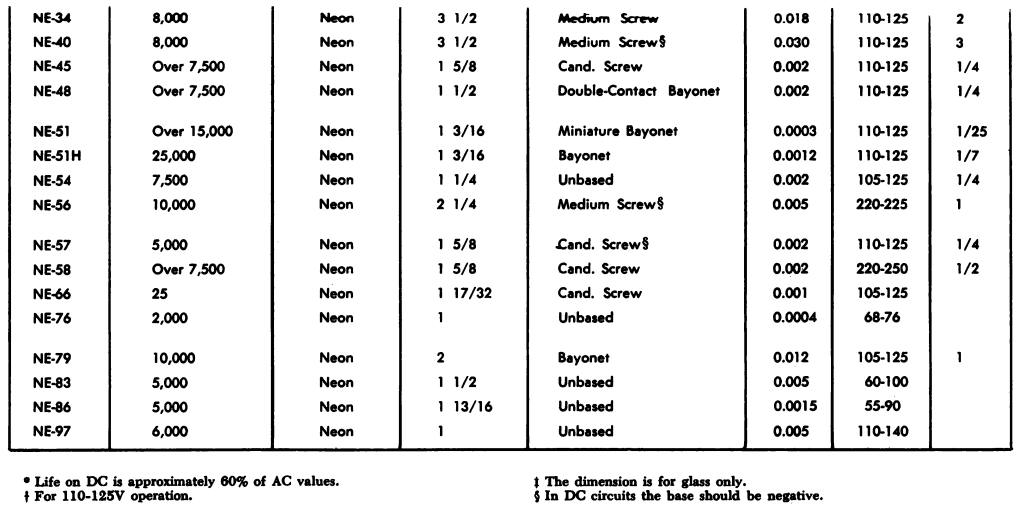

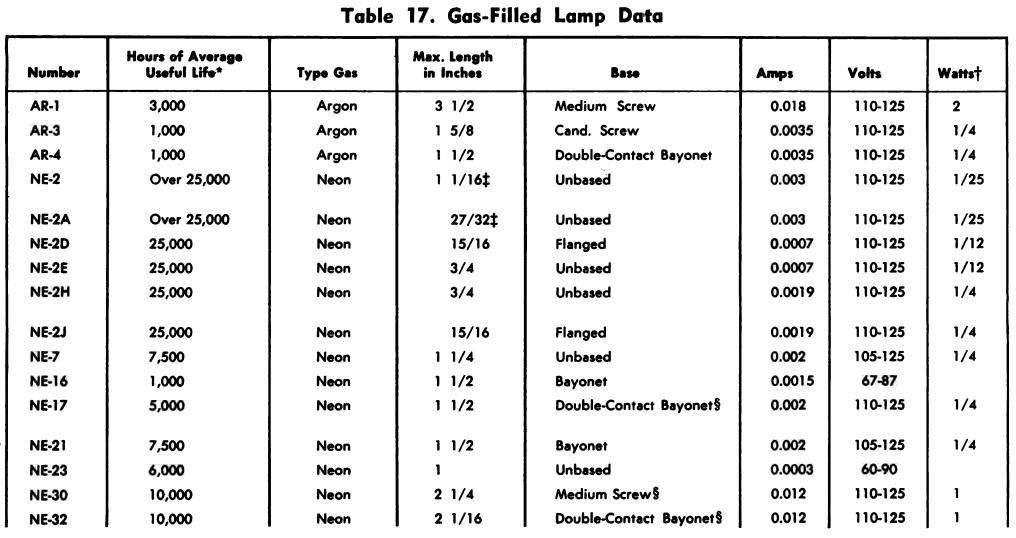

GAS-FILLED LAMP DATA

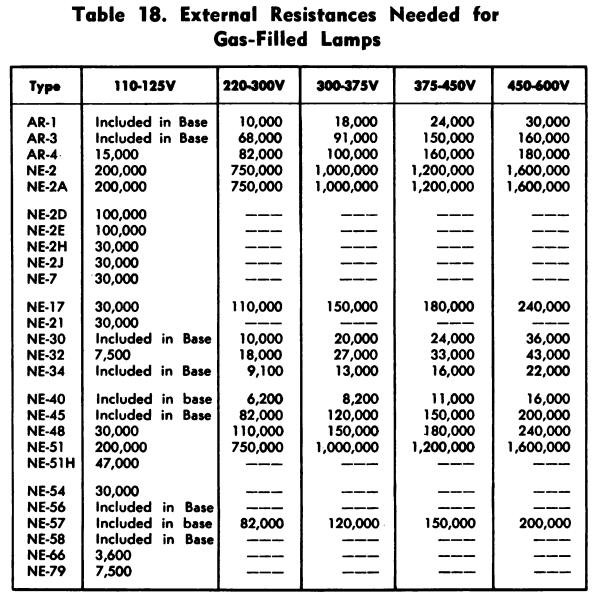

The characteristics of the most common gas-filled lamps are given in Table 17. The value of external resistance needed for operation with circuit voltages from 110 to 600 volts is given in Table 18.

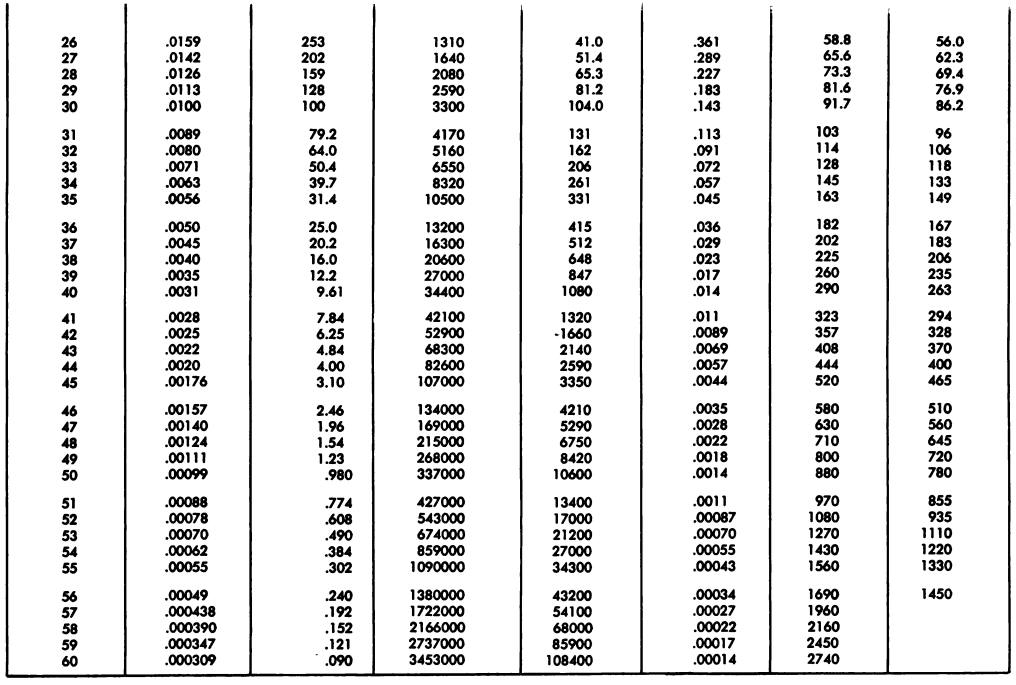

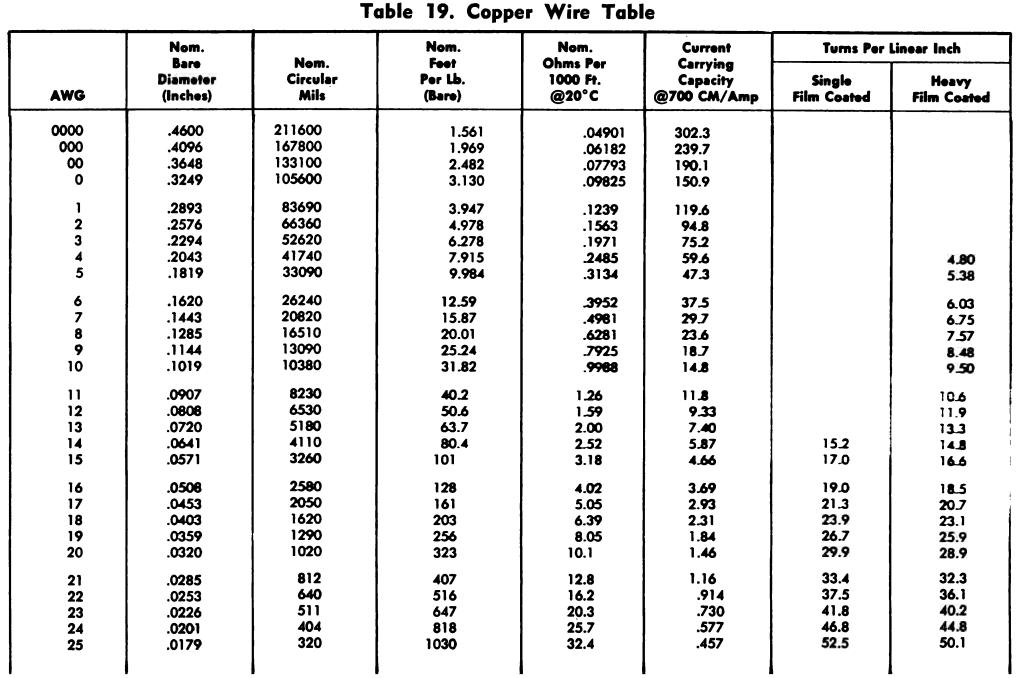

COPPER WIRE TABLE
Copper wire sizes ranging from American wire gauge (B & S) 0000 to 60 are listed in Table 19. The turns per linear inch, diameter, area in circular mils, current-carrying capacity, feet per pound, and resistance per 1000 feet are included in the table.

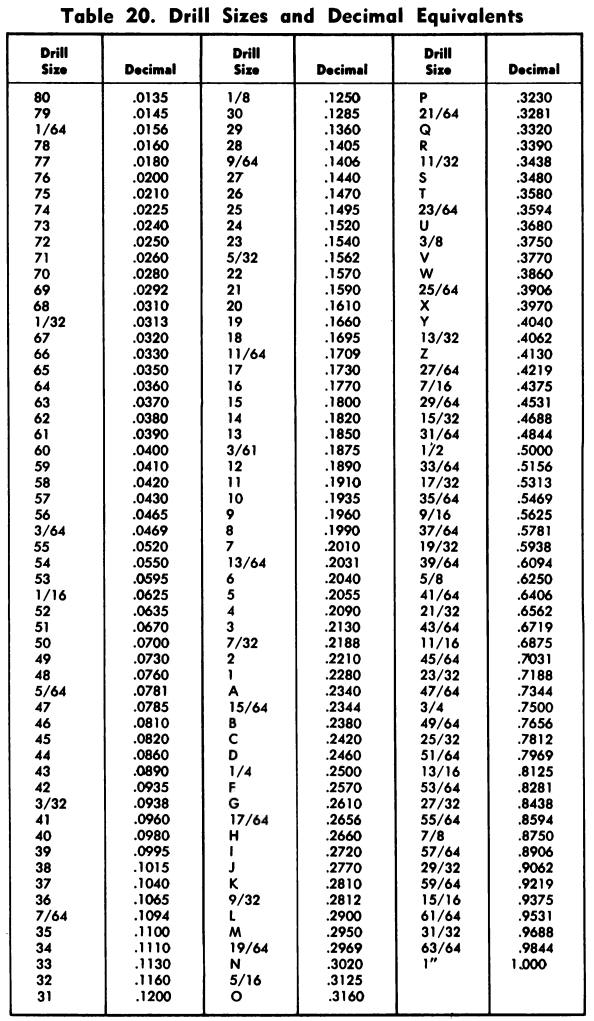

MACHINE SCREW AND DRILL SIZES
The decimal equivalents of No. 80 to 1-inch drills are given in Table 20.

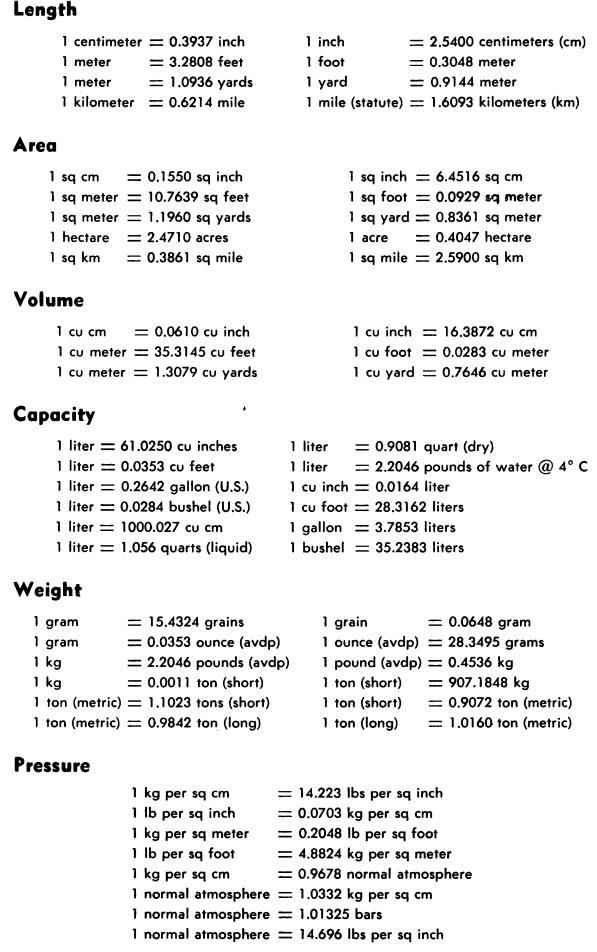

METRIC EQUIVALENTS
