Timer 555
Émetteur Morse

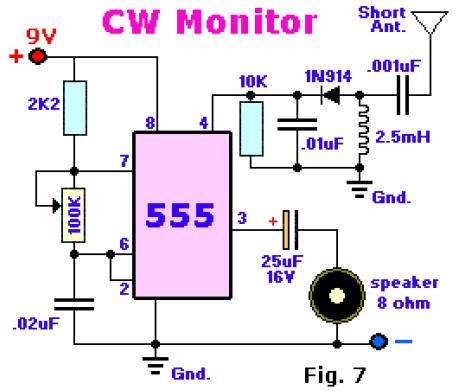

Fig. 7 CW Monitor:

This circuit monitors the morse code 'on-air' via the tuning circuit hookup to pin 4 and the short wire antenna. The 100K potmeter controls the tone-pitch.
