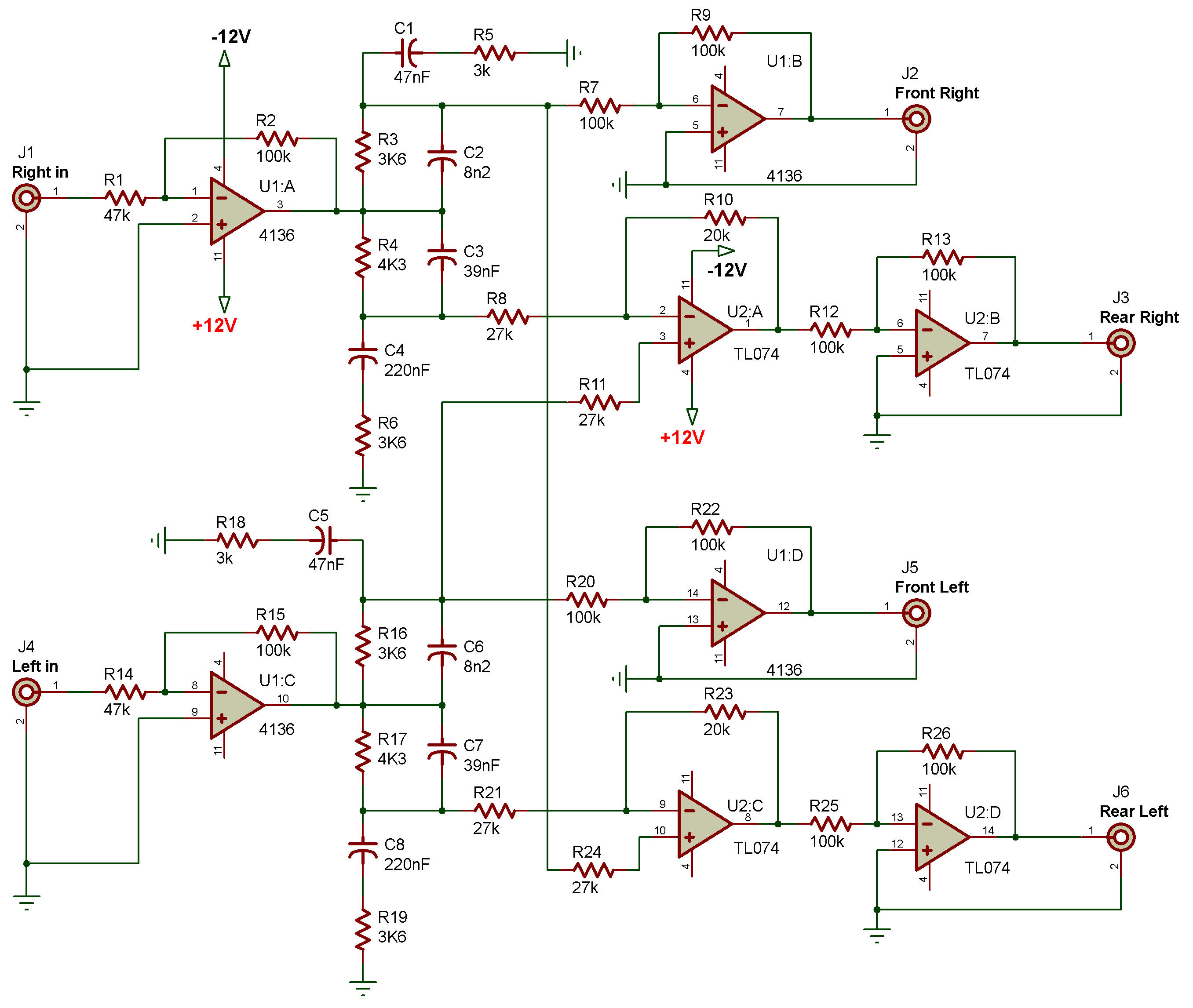

Active Surround Sound
Électronique / Electronic

Bill Of Materials For Active Surround Sound Circuit
26 Resistors
Quantity: References Value
2 R1, R14 47k
10 R2, R7, R9, R12, R13, R15, R20, R22, R25, R26 100k
4 R3, R6, R16, R19 3K6
2 R4, R17 4K3
2 R5, R18 3k
4 R8, R11, R21, R24 27k
2 R10, R23 20k
8 Capacitors
Quantity: References Value
2 C1, C5 47nF
2 C2, C6 8n2
2 C3, C7 39nF
2 C4, C8 220nF
2 Integrated Circuits
Quantity: References Value
1 U1 4136
1 U2 TL074
6 Miscellaneous
Quantity: References Value
1 J1 Right in
1 J2 Front Right
1 J3 Rear Right
1 J4 Left in
1 J5 Front Left
1 J6 Rear Left
