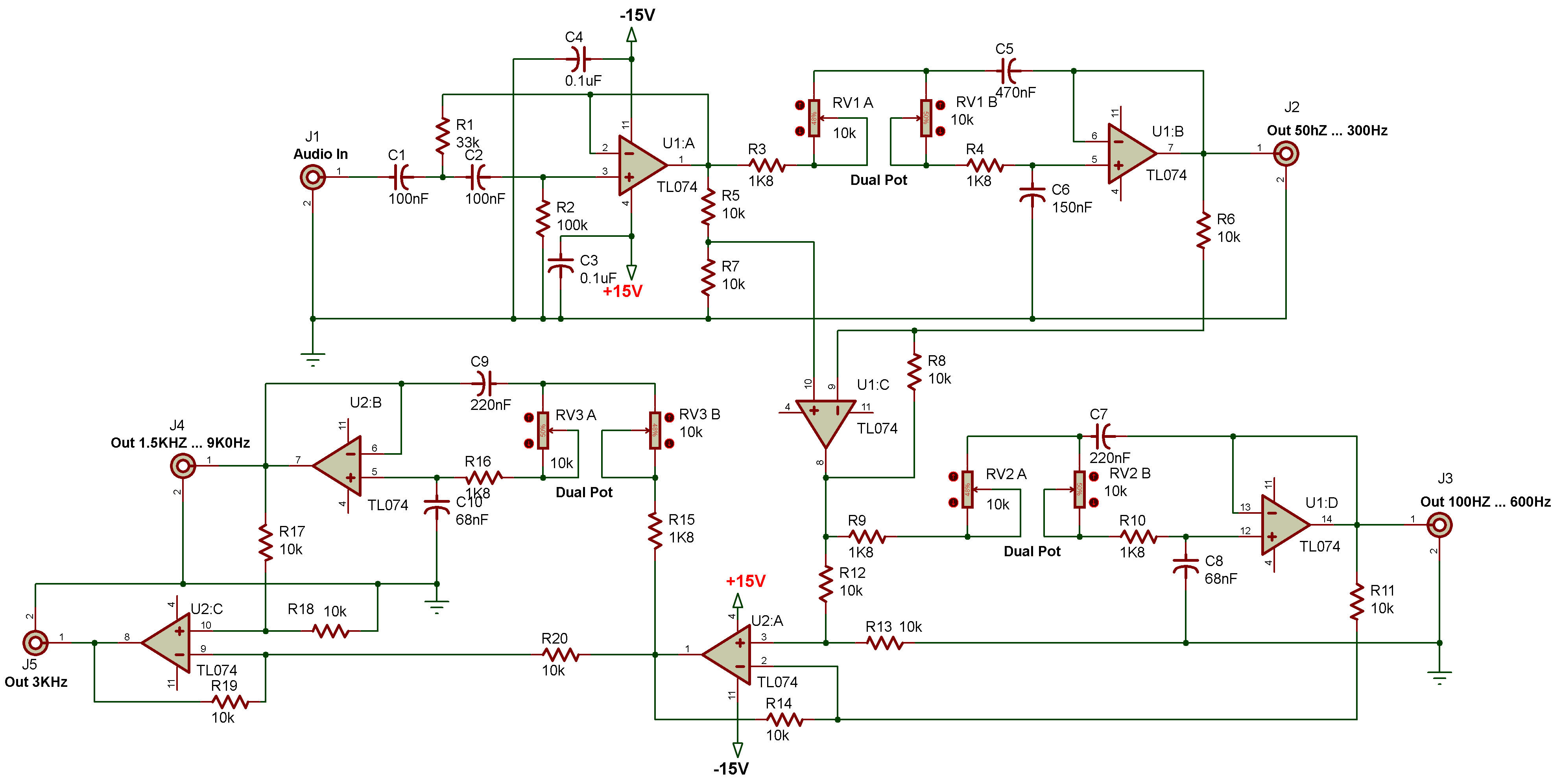

Crossover 04
Électronique /
Electronic
Audio
| Bill Of Materials For Crossover 04 | ||||||
| 20 Resistors | ||||||
| Quantity: | References | Value | ||||
| 1 | R1 | 33k | ||||
| 1 | R2 | 100k | ||||
| 6 | R3, R4, R9, R10, R15, R16 | 1K8 | ||||
| 12 | R5-R8, R11-R14, R17-R20 | 10k | ||||
| 10 Capacitors | ||||||
| Quantity: | References | Value | ||||
| 2 | C1, C2 | 100nF | ||||
| 2 | C3, C4 | 0.1uF | ||||
| 1 | C5 | 470nF | ||||
| 1 | C6 | 150nF | ||||
| 2 | C7, C9 | 220nF | ||||
| 2 | C8, C10 | 68nF | ||||
| 2 Integrated Circuits | ||||||
| Quantity: | References | Value | ||||
| 2 | U1, U2 | TL074 | ||||
| 11 Miscellaneous | ||||||
| Quantity: | References | Value | ||||
| 1 | J1 | Audio In | ||||
| 1 | J2 | Out 50hZ ... 300Hz | ||||
| 1 | J3 | Out 100HZ ... 600Hz | ||||
| 1 | J4 | Out 1.5KHZ ... 9K0Hz | ||||
| 1 | J5 | Out 3KHz | ||||
| 6 | RV1 Dual, RV2 Dual, RV3 Dual | 10k | ||||
