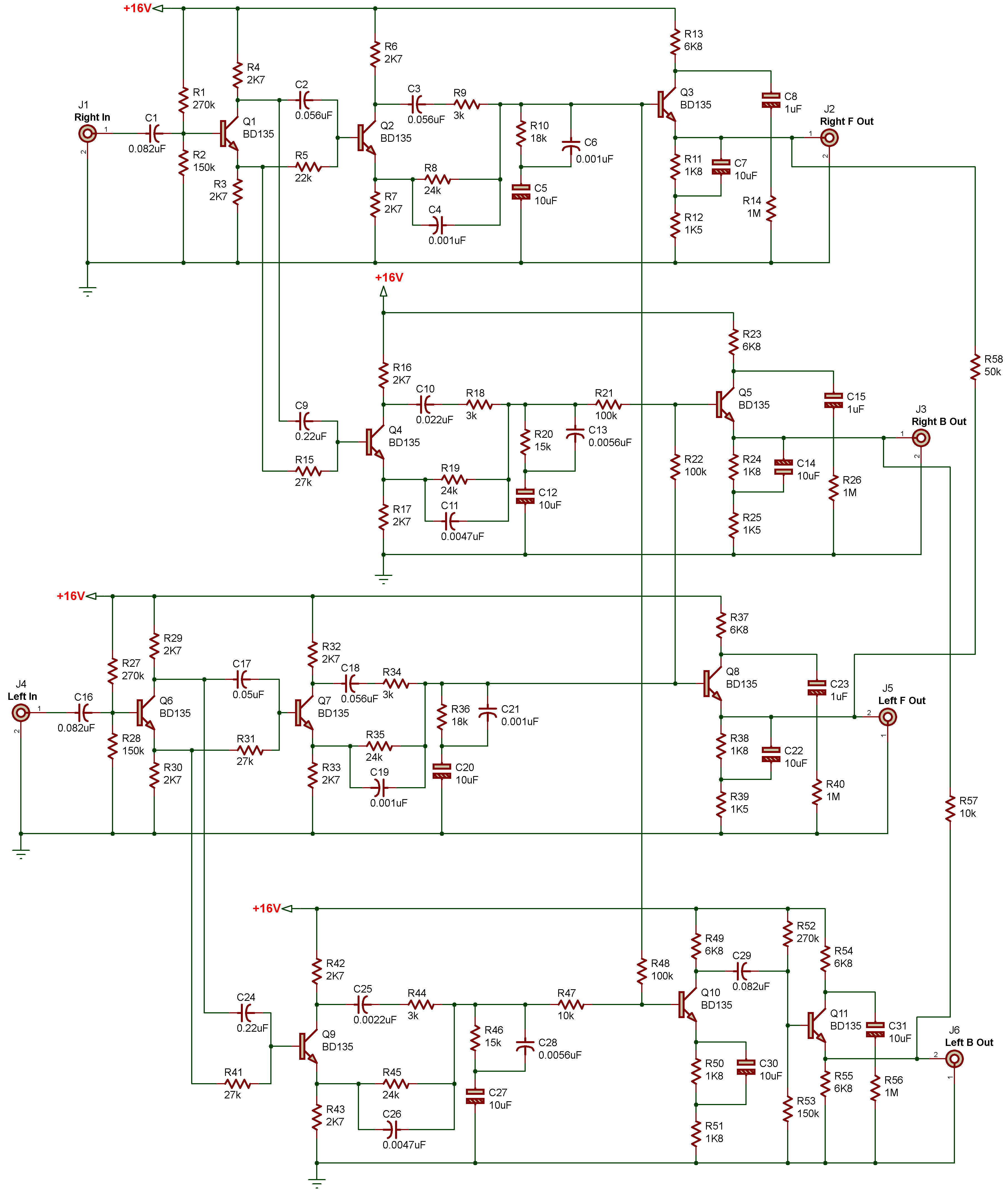

SQ Quadraphonic Decoder
Électronique /
Electronic
Audio
| Bill Of Materials For SQ Decoder Quadraphonic | ||||||
| 58 Resistors | ||||||
| Quantity: | References | Value | ||||
| 3 | R1, R27, R52 | 270k | ||||
| 3 | R2, R28, R53 | 150k | ||||
| 12 | R3, R4, R6, R7, R16, R17, R29, R30, R32, R33, R42, R43 | 2K7 | ||||
| 1 | R5 | 22k | ||||
| 4 | R8, R19, R35, R45 | 24k | ||||
| 4 | R9, R18, R34, R44 | 3k | ||||
| 2 | R10, R36 | 18k | ||||
| 5 | R11, R24, R38, R50, R51 | 1K8 | ||||
| 3 | R12, R25, R39 | 1K5 | ||||
| 6 | R13, R23, R37, R49, R54, R55 | 6K8 | ||||
| 4 | R14, R26, R40, R56 | 1M | ||||
| 3 | R15, R31, R41 | 27k | ||||
| 2 | R20, R46 | 15k | ||||
| 3 | R21, R22, R48 | 100k | ||||
| 2 | R47, R57 | 10k | ||||
| 1 | R58 | 50k | ||||
| 31 Capacitors | ||||||
| Quantity: | References | Value | ||||
| 3 | C1, C16, C29 | 0.082uF | ||||
| 3 | C2, C3, C18 | 0.056uF | ||||
| 4 | C4, C6, C19, C21 | 0.001uF | ||||
| 9 | C5, C7, C12, C14, C20, C22, C27, C30, C31 | 10uF | ||||
| 3 | C8, C15, C23 | 1uF | ||||
| 2 | C9, C24 | 0.22uF | ||||
| 1 | C10 | 0.022uF | ||||
| 2 | C11, C26 | 0.0047uF | ||||
| 2 | C13, C28 | 0.0056uF | ||||
| 1 | C17 | 0.05uF | ||||
| 1 | C25 | 0.0022uF | ||||
| 11 Transistors | ||||||
| Quantity: | References | Value | ||||
| 11 | Q1-Q11 | BD135 | ||||
| 6 Miscellaneous | ||||||
| Quantity: | References | Value | ||||
| 1 | J1 | Right In | ||||
| 1 | J2 | Right F Out | ||||
| 1 | J3 | Right B Out | ||||
| 1 | J4 | Left In | ||||
| 1 | J5 | Left F Out | ||||
| 1 | J6 | Left B Out | ||||
