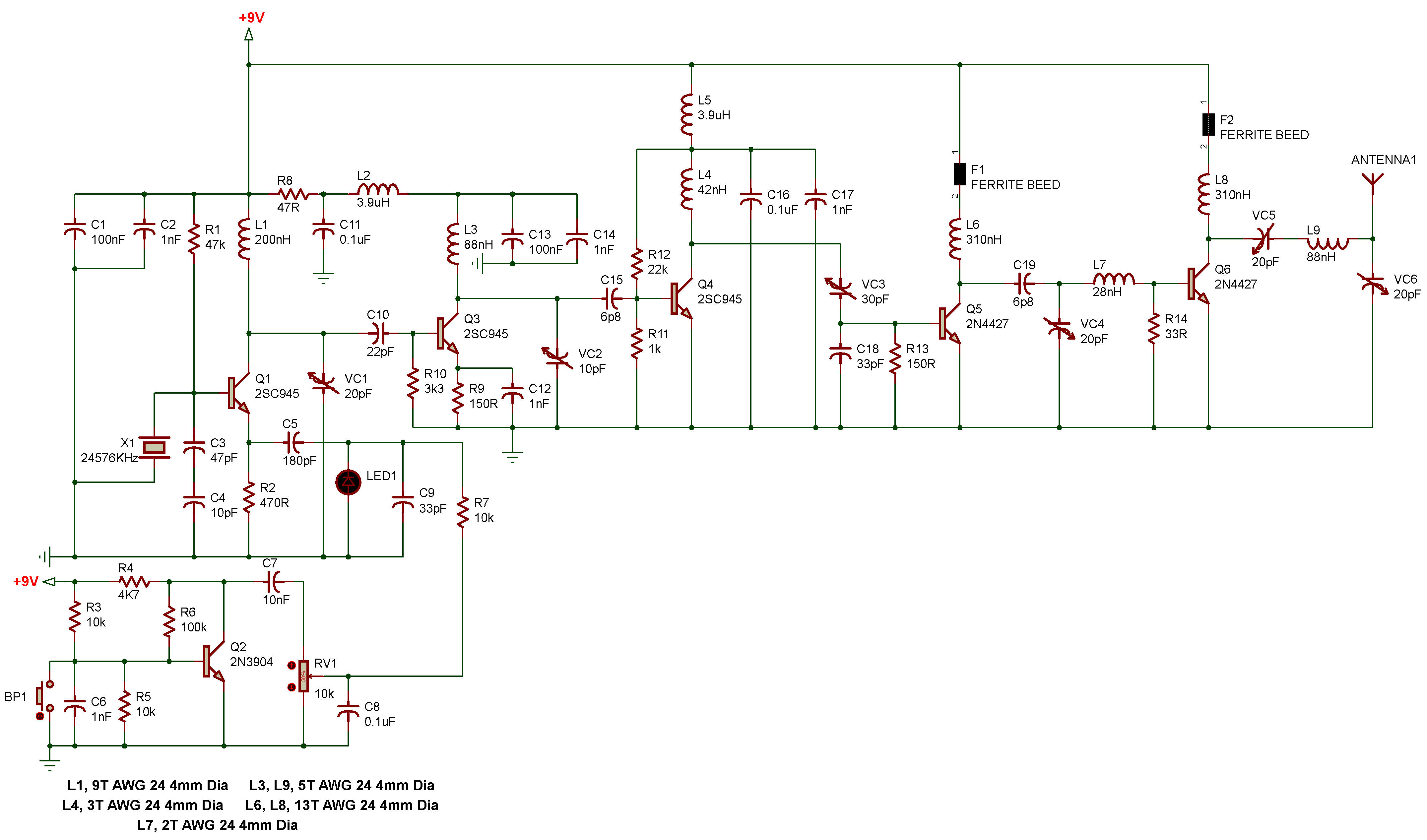

2m 1W FM TX
Électronique / Electronic

Bill Of Materials For 2m 1W FM TX
14 Resistors
Quantity: References Value
1 R1 47k
1 R2 470R
3 R3, R5, R7 10k
1 R4 4K7
1 R6 100k
1 R8 47R
2 R9, R13 150R
1 R10 3k3
1 R11 1k
1 R12 22k
1 R14 33R
19 Capacitors
Quantity: References Value
2 C1, C13 100nF
5 C2, C6, C12, C14, C17 1nF
1 C3 47pF
1 C4 10pF
1 C5 180pF
1 C7 10nF
3 C8, C11, C16 0.1uF
2 C9, C18 33pF
1 C10 22pF
2 C15, C19 6p8
6 Transistors
Quantity: References Value
3 Q1, Q3, Q4 2SC945
1 Q2 2N3904
2 Q5, Q6 2N4427
22 Miscellaneous
Quantity: References Value
1 ANTENNA1
1 BP1 BUTTON
1 L1 200nH
2 L2, L5 3.9uH
2 L3, L9 88nH
1 L4 42nH
2 L6, L8 310nH
1 L7 28nH
2 F1, F2 FERRITE BEED
1 LED1 LED-GREEN
1 RV1 10k
4 VC1, VC4-VC6 20pF
1 VC2 10pF
1 VC3 30pF
1 X1 24576KHz
