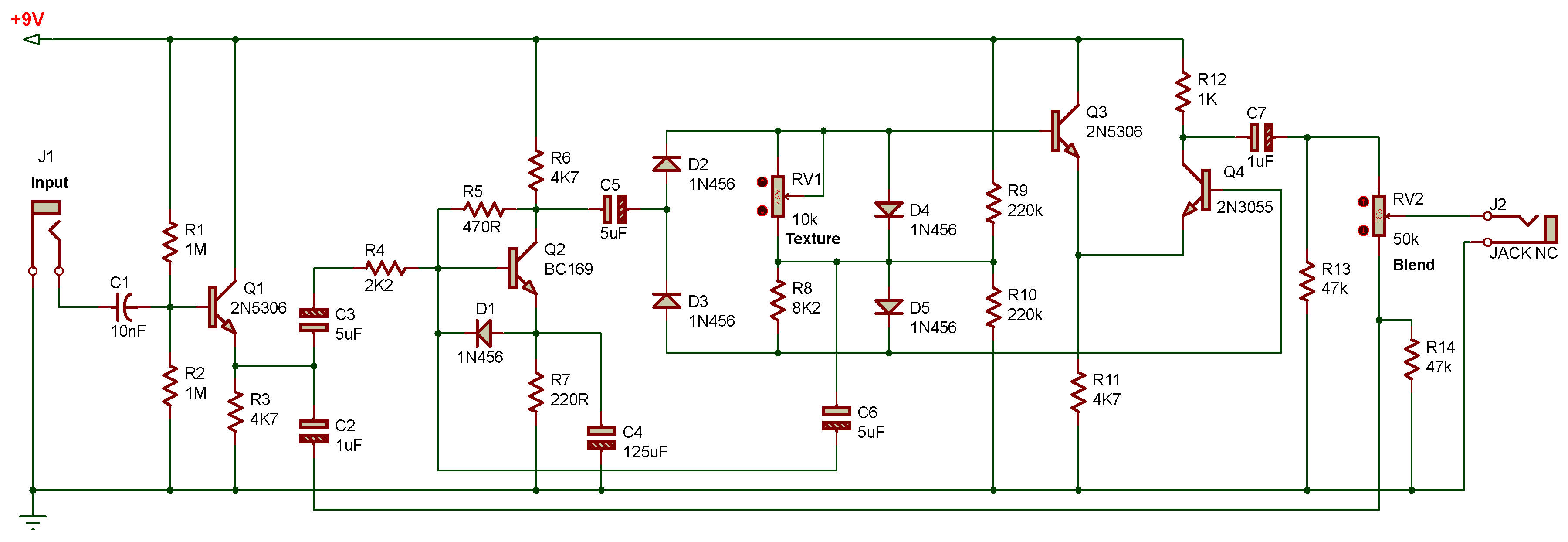

Ampeg Scrambler
Guitar effects
Électronique /
Electronic
Audio
| Bill Of Materials For Ampeg Scrambler | ||||||
| 14 Resistors | ||||||
| Quantity: | References | Value | ||||
| 2 | R1, R2 | 1M | ||||
| 3 | R3, R6, R11 | 4K7 | ||||
| 1 | R4 | 2K2 | ||||
| 1 | R5 | 470R | ||||
| 1 | R7 | 220R | ||||
| 1 | R8 | 8K2 | ||||
| 2 | R9, R10 | 220k | ||||
| 1 | R12 | 1K | ||||
| 2 | R13, R14 | 47k | ||||
| 7 Capacitors | ||||||
| Quantity: | References | Value | ||||
| 1 | C1 | 10nF | ||||
| 2 | C2, C7 | 1uF | ||||
| 3 | C3, C5, C6 | 5uF | ||||
| 1 | C4 | 125uF | ||||
| 4 Transistors | ||||||
| Quantity: | References | Value | ||||
| 2 | Q1, Q3 | 2N5306 | ||||
| 1 | Q2 | BC169 | ||||
| 1 | Q4 | 2N3055 | ||||
| 5 Diodes | ||||||
| Quantity: | References | Value | ||||
| 5 | D1-D5 | 1N456 | ||||
| 4 Miscellaneous | ||||||
| Quantity: | References | Value | ||||
| 1 | J1 | Input | ||||
| 1 | J2 | JACK NC | ||||
| 1 | RV1 | 10k | ||||
| 1 | RV2 | 50k | ||||
