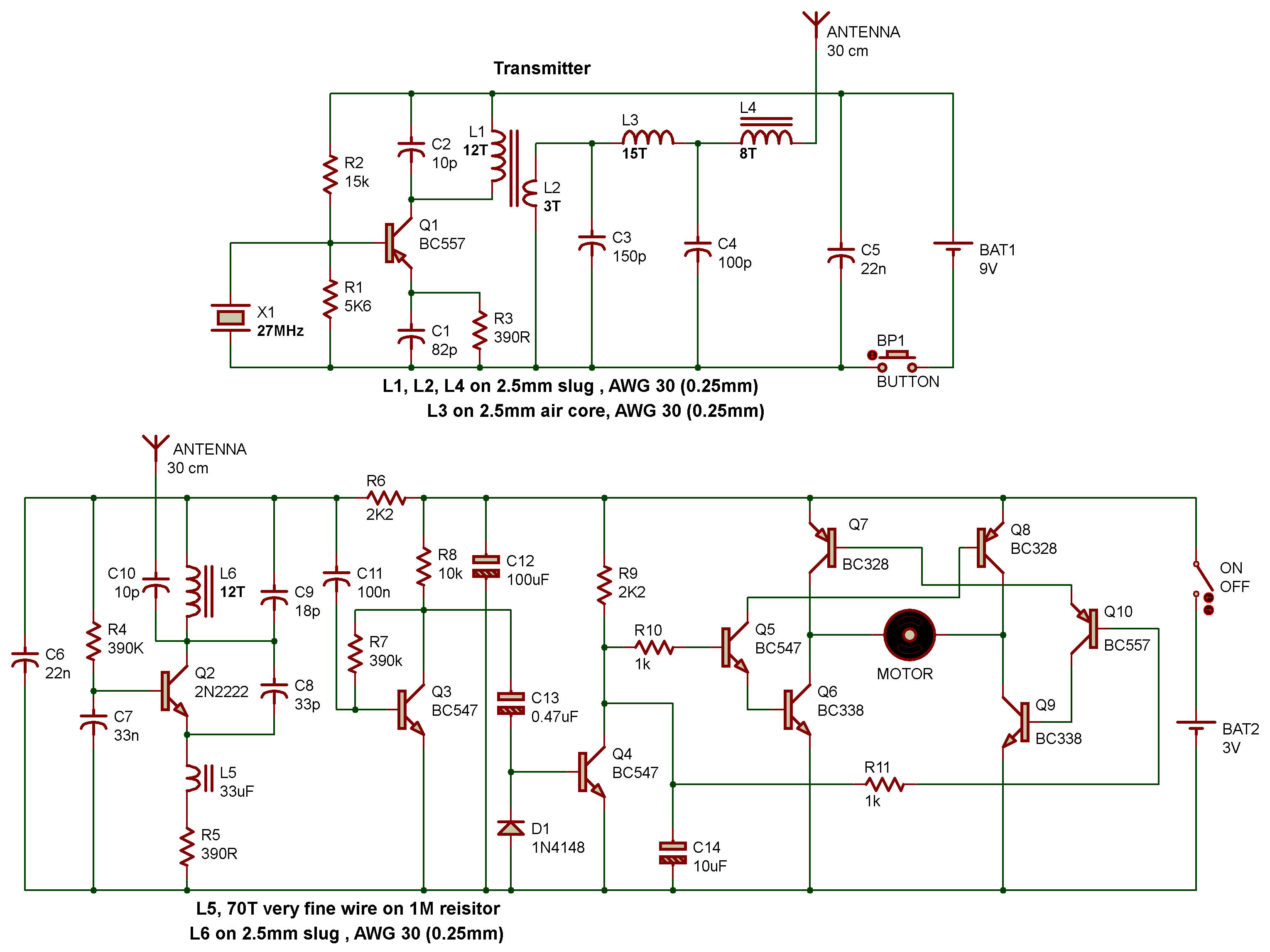

27 MHz transmitter - receiver 02
Électronique / Electronic

Bill Of Materials For 27 MHz transmitter - receiver 02
11 Resistors
Quantity: References Value
1 R1 5K6
1 R2 15k
2 R3, R5 390R
2 R4, R7 390K
2 R6, R9 2K2
1 R8 10k
2 R10, R11 1k
14 Capacitors
Quantity: References Value
1 C1 82p
2 C2, C10 10p
1 C3 150p
1 C4 100p
2 C5, C6 22n
1 C7 33n
1 C8 33p
1 C9 18p
1 C11 100n
1 C12 100uF
1 C13 0.47uF
1 C14 10uF
10 Transistors
Quantity: References Value
2 Q1, Q10 BC557
1 Q2 2N2222
3 Q3-Q5 BC547
2 Q6, Q9 BC338
2 Q7, Q8 BC328
1 Diodes
Quantity: References Value
1 D1 1N4148
14 Miscellaneous
Quantity: References Value
2 ANTENNA R, ANTENNA T 30 cm
1 BAT1 9V
2 BAT2, MOTOR 3V
1 BP1 BUTTON
2 L1, L6 12T
1 L2 3T
1 L3 15T
1 L4 8T
1 L5 33uF
1 ON OFF
1 X1 27MHz
