3 or 4 inputs NAND gate
Electronic / Électronique

Note: For 74xx logic gate all inputs need a pull-down resistor

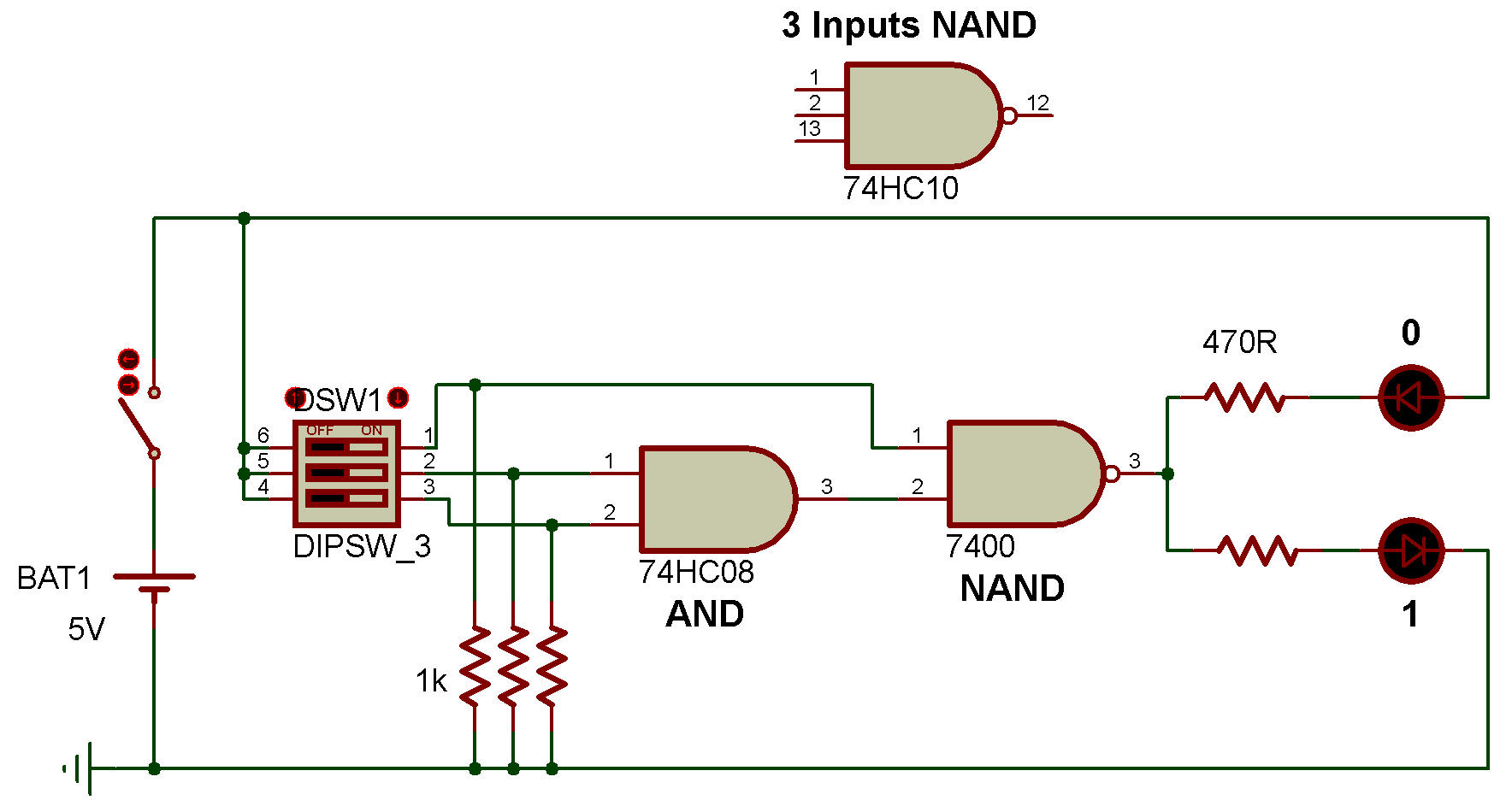

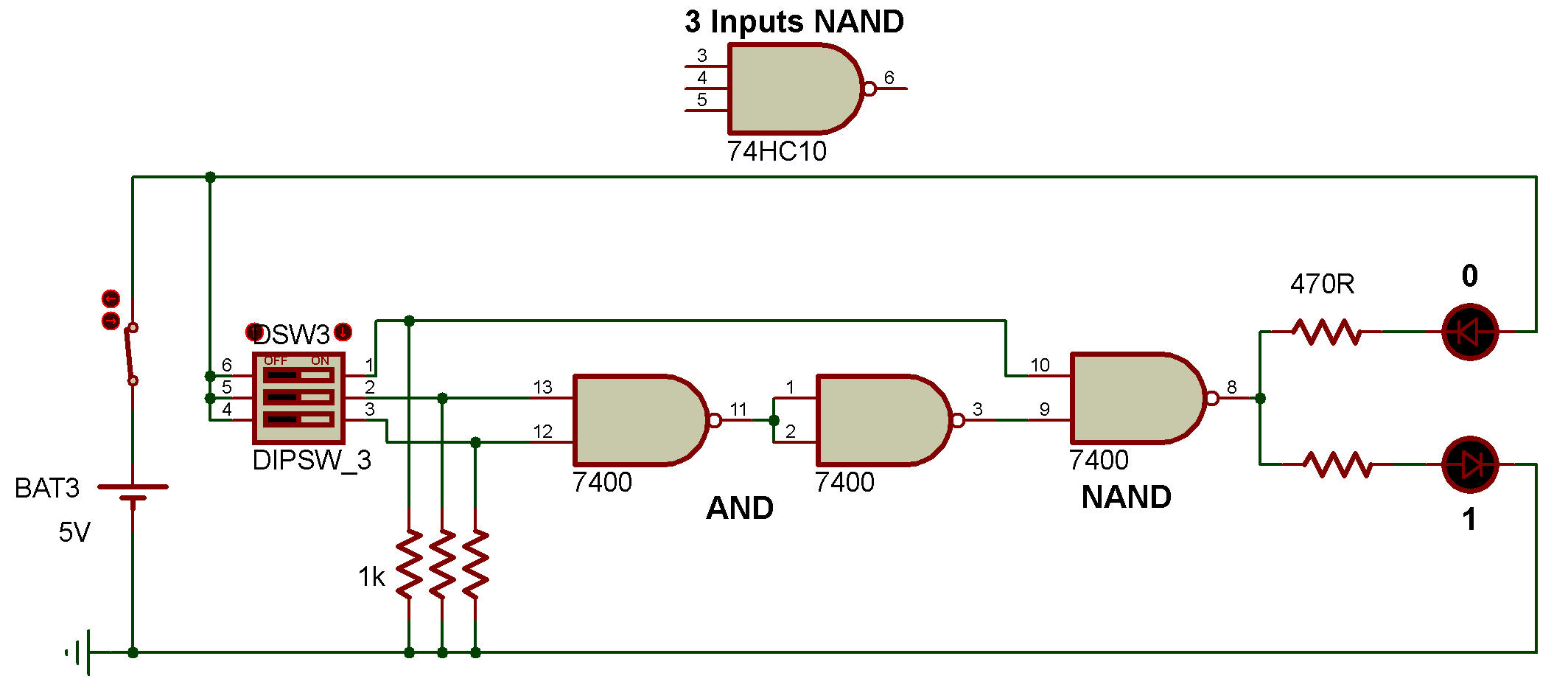

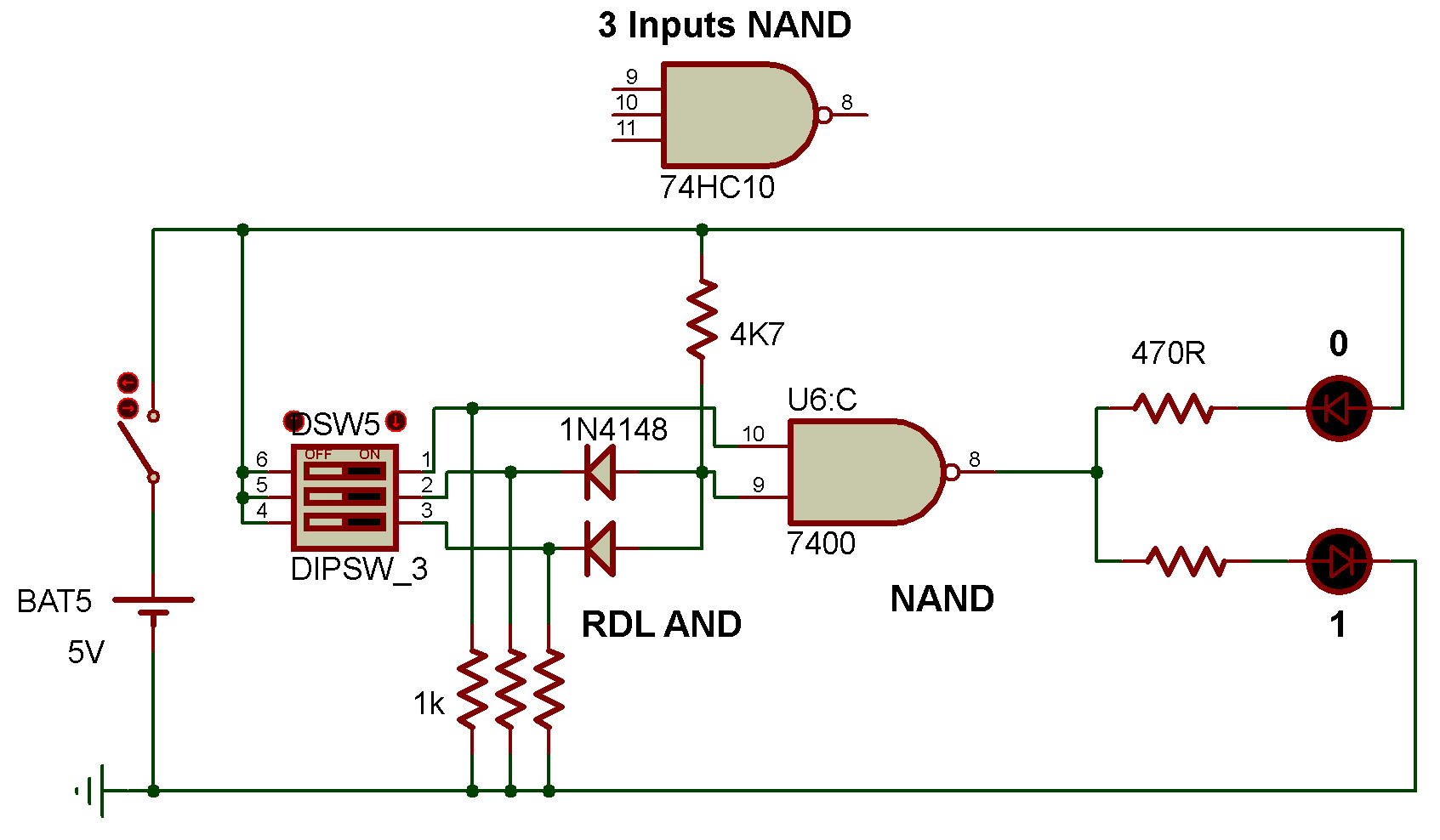

3 inputs NAND

Note: For 74xx logic gate all inputs need a pull-down resistor

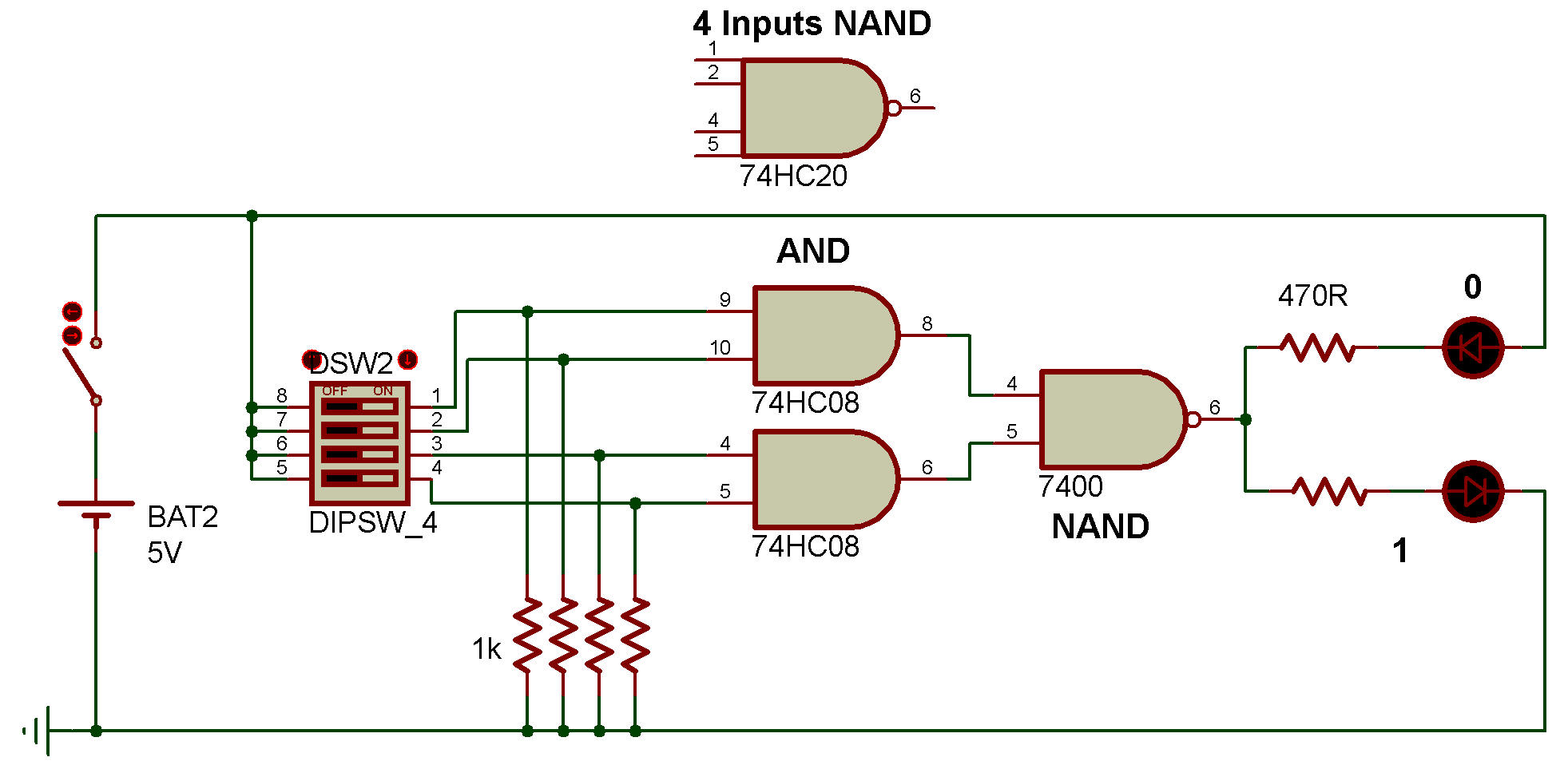

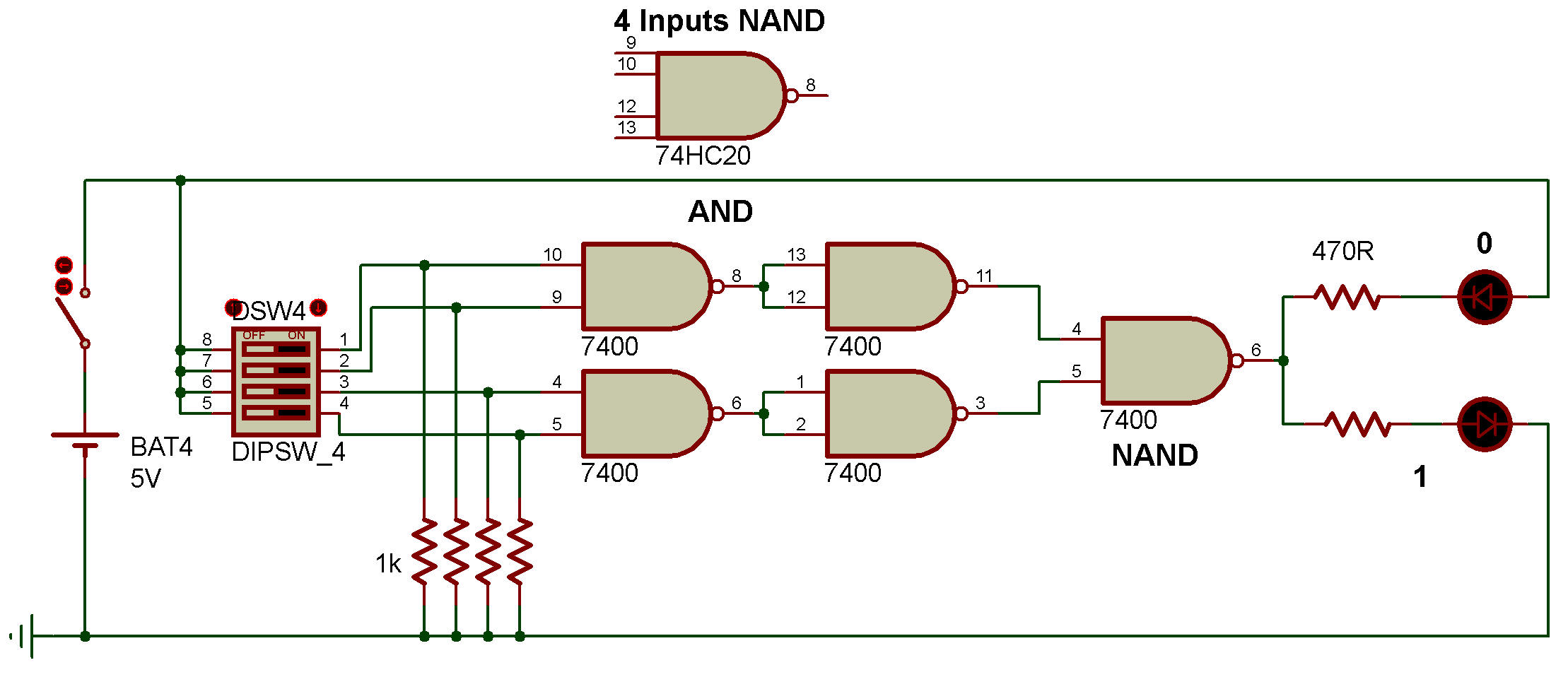

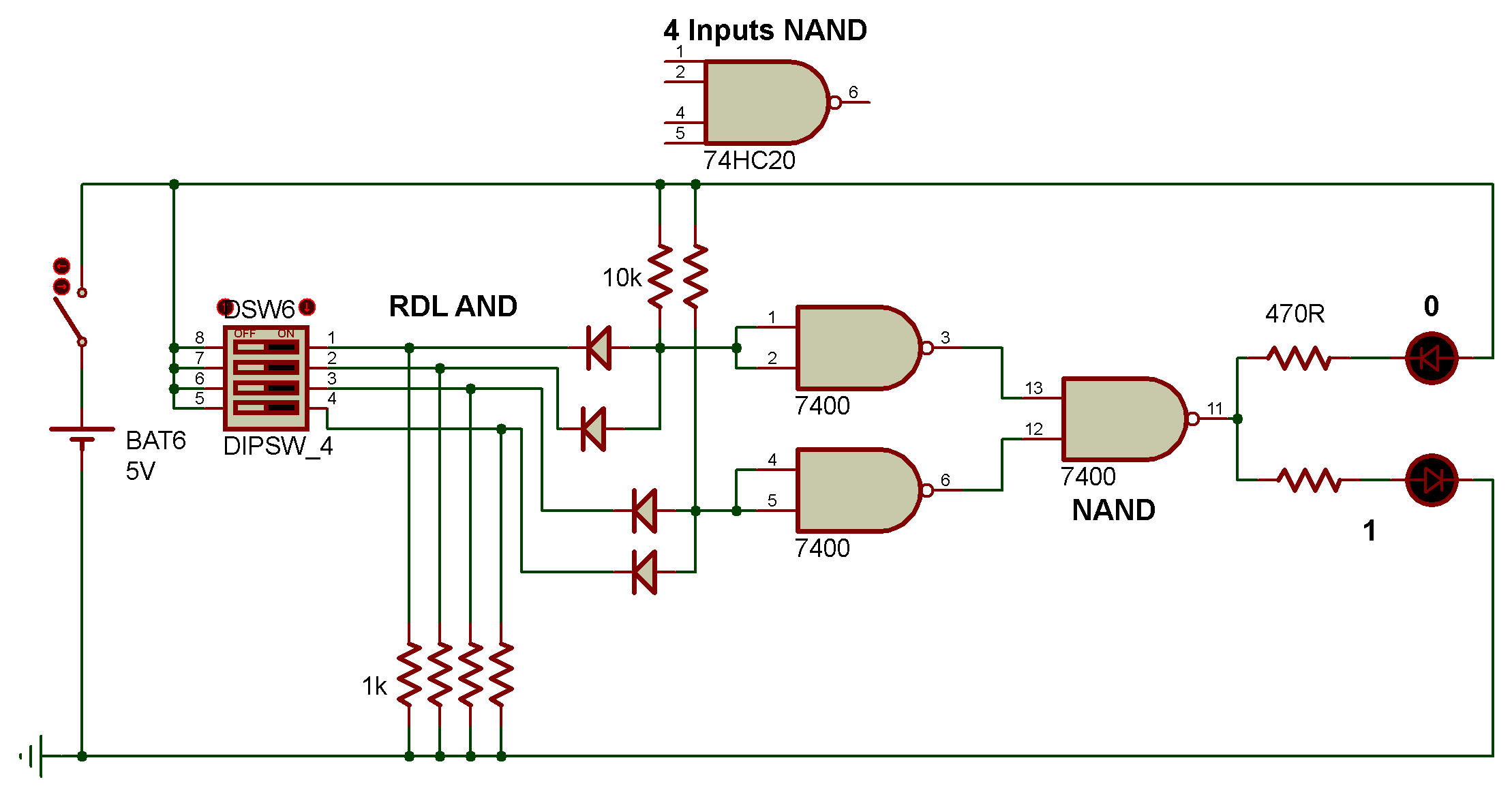

4 inputs NAND
