LM3915, LM3916
Vumètre / Vu meter
Électronique /
Electronic

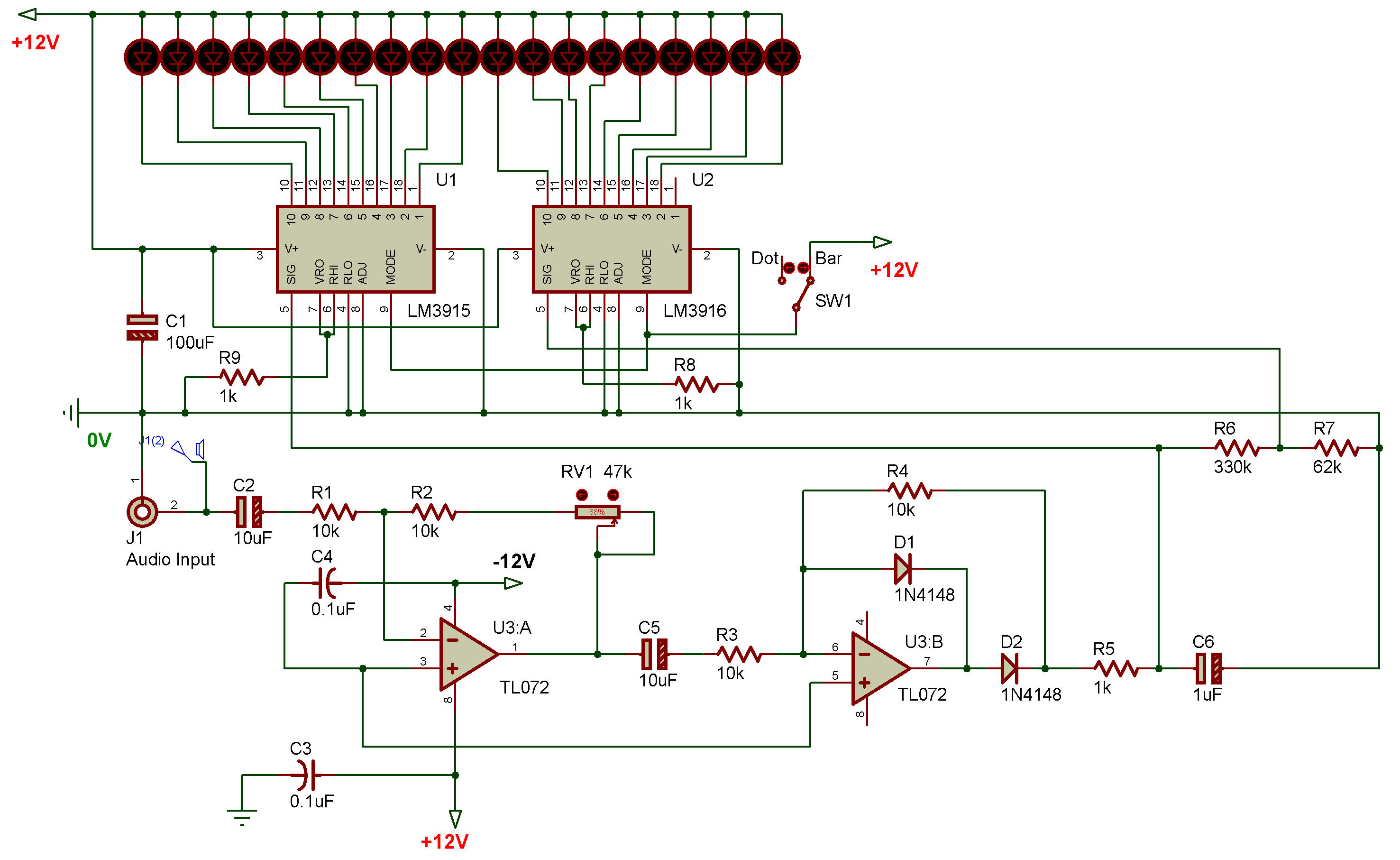

| Bill Of Materials For LM3915, LM3916 Vu meter | |||||
| 9 Resistors | |||||
| Quantity: | References | Value | |||
| 4 | R1-R4 | 10k | |||
| 3 | R5, R8, R9 | 1k | |||
| 1 | R6 | 330k | |||
| 1 | R7 | 62k | |||
| 6 Capacitors | |||||
| Quantity: | References | Value | |||
| 1 | C1 | 100uF | |||
| 2 | C2, C5 | 10uF | |||
| 2 | C3, C4 | 0.1uF | |||
| 1 | C6 | 1uF | |||
| 3 Integrated Circuits | |||||
| Quantity: | References | Value | |||
| 1 | U1 | LM3915 | |||
| 1 | U2 | LM3916 | |||
| 1 | U3 | TL072 | |||
| 2 Diodes | |||||
| Quantity: | References | Value | |||
| 2 | D1, D2 | 1N4148 | |||
| 22 Miscellaneous | |||||
| Quantity: | References | Value | |||
| 1 | J1 | Audio Input | |||
| 19 | LED1-LED19 | LED-Green,Yellow, Red | |||
| 1 | RV1 | 47k | |||
| 1 | SW1 | Bar | |||
